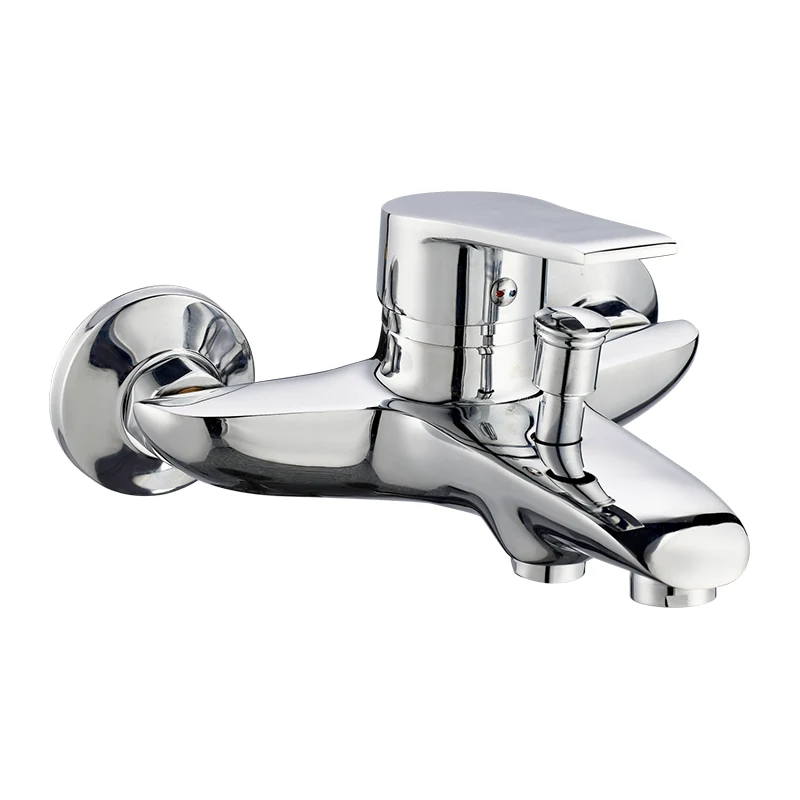

1. The surface-mounted single-handle bathtub faucet features a high-purity mirror chrome finish with a uniform and dense coating, offering maximum eflectivity. It boasts a premium, versatile aesthetic suitable for modern, minimalist, and light luxury bathroom styles. Additionally, it possesses superior rust, corrosion, and limescale resistance;water stains wipe off easily, and it remains bright and clean even after long-term use.
2. The faucet body features rounded, smooth lines with no excess edges or seams. Thiign not only conforms to ergonomics but also minimizes hard-to-clean areas, making cleaning effortless while balancing aesthetics and practicality.
3. The top is equipped with a large,ingle handle for effortless and convenient operation: moving it up and down controls water flow, while rotating left and right precisely adjusts the temperature. Clear red (hot) and blue (coldndicators on the handle make it easy for both the elderly and children to use.
4. The dual-outlet design allows one valve to serve multiple functions. The lower spout provides t water flow for filling the bathtub, while the side-mounted lever diverter allows one-touch switching to the top shower head interface, enabling "bathtub shower" dual functionality to ious bathing needs without requiring additional valve installation.
5. The round base on the left serves as a surface-mounted fixing bracket, directly installed on the wall and compatible with most household concealedwater pipes. Installation is simple and secure, suitable for both new home renovations and old house upgrades. It features a high-precision ceramic valve core tested with hundreds of thousands of cycles, ensth operation without jamming and maximum sealing performance. This design eliminates dripping and seepage issues at the source, with a service life far exceeding industry standards, ensuring long-term stability andliability.
6. The lower spout can be paired with a high-quality aerator that fully mixes water and air, producing a fine, soft flow like foam. This preventshing, saves water, and reduces noise, ensuring a smooth and splash-free bathtub filling experience for an enhanced user experience.
|
category |
specific parameters |
|
Main material |
High-quality Brass (H59-1 National Standard Brass, Lead-free Eco-friendly) |
|
Valve core type |
High-precision ceramic valve core |
|
Surface treatment |
Multi-layer mirror chrome plating process (copper base nickel layer chrome layer) |
|
Coating thickness |
Nickel layer ≥8μm, chromium layer ≥0.2μm, compliant with national standard GB/T 17219 |
|
Aerator |
Honeycomb water-saving aerator (optional) |
|
Total height |
Approx. 110mm |
|
Distance from faucet outlet center to wall |
Approx. 120mm |
|
Center distance of inlet holes |
150mm (National Standard Hole Spacing, ±15mm Adjustable) |
|
Base diameter |
Approx.70mm |
|
Handle length |
Approx.70mm |
